Alubond®A2

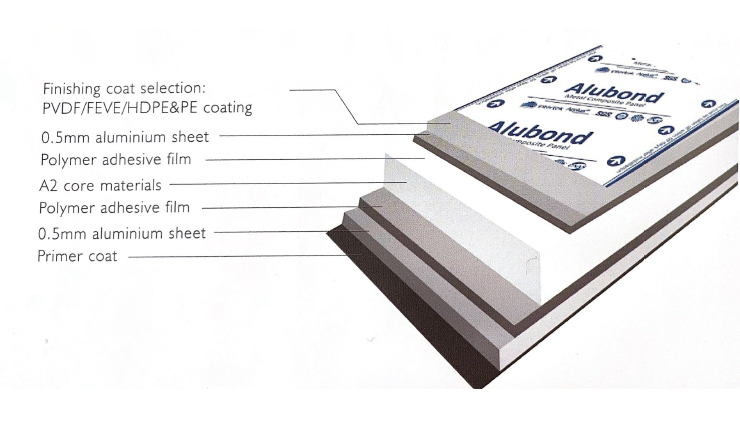

Alubond®A2 ACP is a new product composed of two layers of 0.5mm thick aluminium alloy and inorganic material (magnesium hydroxide and aluminium hydroxide etc.). The painting layer is PVDF coating made of over 70% PVDF resin and KYNAR500 (or HYLAR5000) with high performance and weather resistance. Compared with other coating methods, Alubond adopts continuous liquid coating in roll technology to reach various colors and beautiful gloss. Alubond®A2 is available in MAX 2000 mm wide, providing countless concept opportunities for architects and installers.
Alubond®A2 has passed the mainly global lab testing include INTERTEK, SGS, GOST, PSB and APPLUS and has been classified as A2 fireproof grade. Alubond®A2 can be widely applicable to transportation junction such as airport, high-speed railways, and public facility like stadium, school, hospital etc.
Standard Specification
Aluminium Thickness: 0.30mm, 0.40mm, 0.50mm
Panel Thickness: 3mm, 4mm, 5mm, 6mm
Width: 1220mm, 1250mm, 1500mm, 2000mm
(Special width can be negotiated)
Length: 2440mm, 3200mm, or as per customer’s requirement
CORE |
COMMON ACP |
ALUBOND FR |
ALUBOND A2 |
|---|---|---|---|
|
Approx. portion of combustible ingredients within the core material |
100% |
<25% |
<4% |
|
Heat Potential of the core material |
>45 MJ/KG |
<11 MJ/KG |
<3 MJ/KG |
|
Reference of Fire Classification |
Euroclass C-D (EN 13501-01:2007) |
Euroclass B ; PSB certificate Class 1 Index 0 |
Euroclass A2 (EN 13501-01:2009) |
|
Bearing time |
20 seconds |
15 minutes |
30 minutes |
|
Bearing temperature |
1500℃ |
1500℃ |
1500℃ |
Non-combustibility
.
